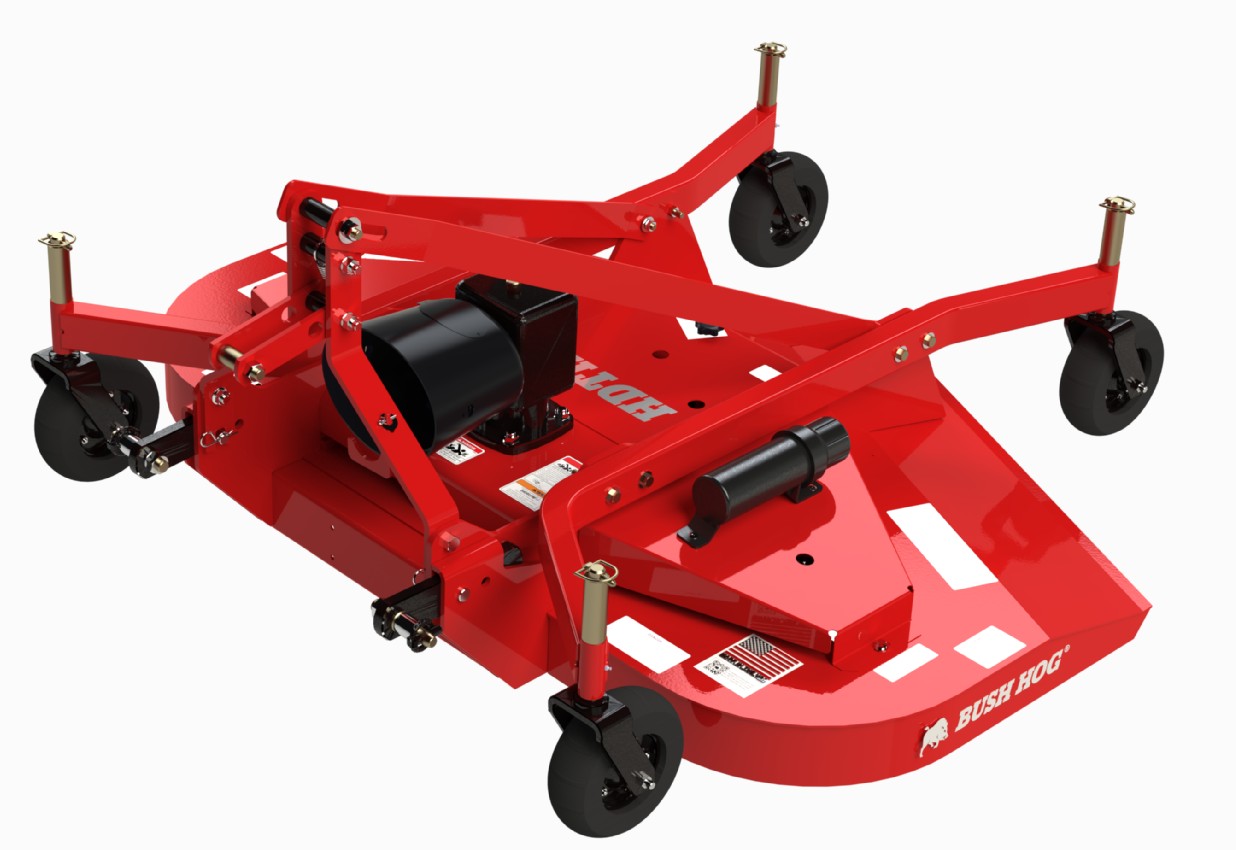

Bush Hog® HDTH Finish Mowers

4 Models Ranging from 60 to 99-inch Cutting Widths

Turn your tractor into a lawn mowing machine with Bush Hog®’s HDTH Finish Mowers. The HDTH Series of Finish Mowers delivers superior grass cutting performance for your well-kept lawn. With models ranging from 60″ to 99″, these mowers can help you save time cutting your lawn, so you can spend more time enjoying it. These mowers come equipped with a standard 3-point hitch and Quick Hitch compatibility, a 7ga deep chamber deck design to allow more flow of material in and out the rear discharge, and solid wheels for more durability and less hassle. The HDTH 5 | HDTH6 | HDTH7 are greasable 3 spindle designs, and the HDTH8 is stretched out to cover more ground with a greasable 5 spindle design. Blade Tip Speeds over 18,000 feet per minute and a 1.5″ blade overlap ensure a clean cut of material in a range of cutting heights from 1.5″ to 6.5″. Built Bush Hog tough in Selma, AL, our HDTH Finish Mowers are manufactured to the highest quality standards for outstanding performance and durability.

HDTH Feature

Performance Features

  • 60-99 inch Cutting Widths
  • Minimum Required HP of 15-35 to meet the needs of today’s smaller, compact tractors
  • Dual floating hitch points allow the mower to rise and fall with the contour of terrain
  • Blade Tip Speeds over 18,200 feet per minute
  • 1½ inch blade overlap eliminates streaking
  • Strong Aramid fiber belts that reduce stretching and maintain proper belt tension
  • Cutting height adjustment is made with the pull of a spring clip, and ranges from 1½ to 6 inches

Construction Features

  • Durable 7 gauge steel decks
  • Self-adjusting, Spring-Loaded Idlers to maintain belt tension
  • Quick Hitch compatibility on all models
  • Dove-tail rear discharge design for even distribution of clippings
  • 5″ Sideband depth to allow additional flow of cut material under deck to reduce clipping size
  • 1 Year Limited Warranty with a 5 Year Gearbox Warranty
  • ASABE S318 – Safety for Agriculture Field Equipment
  • ISO 4254-1 – Agricultural Equipment General Safety


Safety Testing

  • ANSI/OPEI B71.4-2017 – Commercial Turf Care Equipment-Safety Standards
    • Section 21:4.1 – Blade Impact Test
    • Section 21.4.2 – Foot Probe Test
    • Section 21:4.3 – Unbalance Test
    • Section 21.4.4 – Structural Integrity Test – Blade enclosures and guards
    • Section 21:4.6 – Thrown Object Test

Product Features

Available in 4 widths: 60″ | 72″ | 84″ | 99″

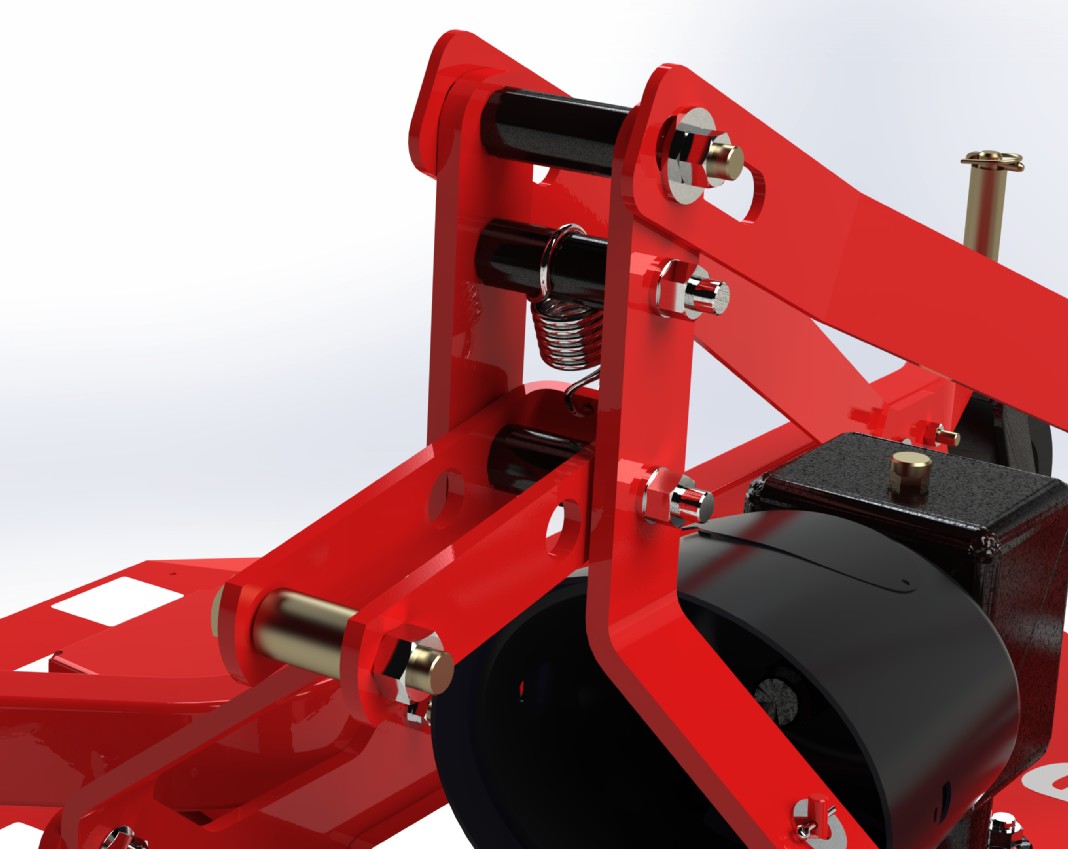

All models equipped with a spring-loaded quick hitch that maintains positive contact between mower hitch and tractor quick hitch when traveling over uneven terrain

Good for Tractors rated 40hp or under

HDTH5, HDTH6, HDTH7

Specifications

MODELS
HDTH5
HDTH6
HDTH7
HDTH8
Cutting Width
60-inches
72-inches
84-inches
99-inches
Cutting Height
1½ – 6″
1½ – 6″
1½ – 6″
1½ – 6″
Minimum Tractor PTO HP
15 PTO
20 PTO
30 PTO
35 PTO
Hitch Type
Cat 1 Std & QH
Cat 1 Std & QH
Cat 1, Cat 2 Std & QH
Cat 1, Cat 2 Std & QH
Blade Size
¼ x 2½ x 21″
¼ x 2½ x 25″
5/16 x 2½ x 29″
¼ x 2½ x 21″
Number of Blades
3
3
3
5
Blade Tip Speed
17,332 FPM
17,421 FPM
17,812 FPM
17,584 FPM
Blade Overlap
1½”
1½”
1½”
1½”
Blade Uplift
Parallel
Parallel
Parallel
Parallel
Driveline Size
ASAE Cat 3
ASAE Cat 3
ASAE Cat 3
ASAE Cat 3
Front Roller (optional)
3×5″
3×5″
3×5″
3×13″
Discharge
Rear
Rear
Rear
Rear
Deck Thickness
7ga
7ga
7ga
7ga
Tires
3¼ x 10 Solid
3¼ x 10 Solid
4 x 10 Solid
5 x 13 Solid
Belts
(1)”B” Size Aramid Cord
(1)”B” Size Aramid Cord
(1)”B” Size Aramid Cord
(2)”B” Size Aramid Cord
Belt Adjustment
Spring-Loaded Idler
Spring-Loaded Idler
Spring-Loaded Idler
Spring-Loaded Idler
Gearbox
45 HP
45 HP
55 HP
55 HP
Approx. Weight
672 lbs
730 lbs
954 lbs
1190 lbs
*** 1-Year Limited Warranty with a 5-Year Limited Gearbox Warranty ***
